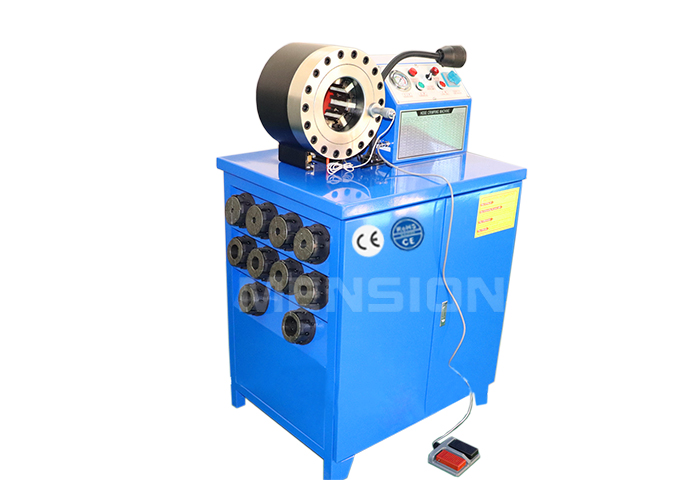

HOSE PRESSING MACHINE 51CG
DESCRIPTION
MS-51CG cable pressing machinery is capable of fabricating hydraulic high pressure oil rubber flexible hose from 1/4 inch to 2 inch (6mm - 51mm), and it is also suitable for industrial low pressure water or air pipe making, metal tube diameter reducing, wire rope connecting and other work piece which need jointing.
MAIN ADVANTAGES
1. Working lamp makes crimping during dark possible
2. Foot pedal switch frees both the hands to improve the efficiency
3. Big flow pistion pump with low noise level
4. Copper wire aluminium shell motor, no heat even after using for long time
5. Simple design, low maintenance cost
TECHNICAL DATA
| Model | MS-51CG Pressing Machine |
| Crimping Range | 14 - 87 (mm) |
| Crimping Force | 500 (T) |
| Hose Size | 6 - 51 (mm) |
| Max. Opening | 30 (mm) |
| Die Sets | 10 |
| Die Set Type | 51 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.05 (mm) |
| Control | Manual, Automatic, Pedal |
| Standard Voltage | 220 (V) |
| Motor Power | 3 (KW) |
| Length | 800 (mm) |
| Width | 640 (mm) |
| Height | 1300 (mm) |
| Weight | 320 (KG) |
CRIMPING DIE SETS
| Die No. # | Crimping (mm) | Length (mm) |
| 6* | 6.0 - 8.0 | 35 |
| 8* | 8.0 - 10.0 | 35 |
| 10* | 10.0 - 12.0 | 35 |
| 12* | 12.0 - 15.0 | 35 |
| 15 | 15.0 - 19.0 | 60 |
| 19 | 19.0 - 23.0 | 60 |
| 23 | 23.0 - 26.0 | 60 |
| 26 | 26.0 - 31.0 | 60 |
| 31 | 31.0 - 36.0 | 70 |
| 36 | 36.0 - 41.0 | 70 |
| 41 | 41.0 - 47.0 | 70 |
| 47 | 47.0 - 55.0 | 80 |
| 55 | 55.0 - 63.0 | 80 |
| 63 | 63.0 - 69.0 | 80 |
| 69* | 69.0 - 76.0 | 90 |
NOTE
• " * " for non standard die sets
• Customized die sets are available
• Special voltage 110V, 208V, 240V, 415V are availbale
OPTIONAL
• Quick Change Tool
• UC control
CRIMPING MACHINE DETAILS
► Human design machine height, convenient for working

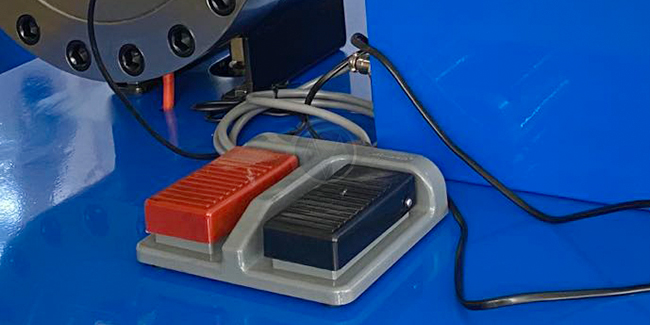

► Foot pedal as alternate for button control, free both of the users' hands

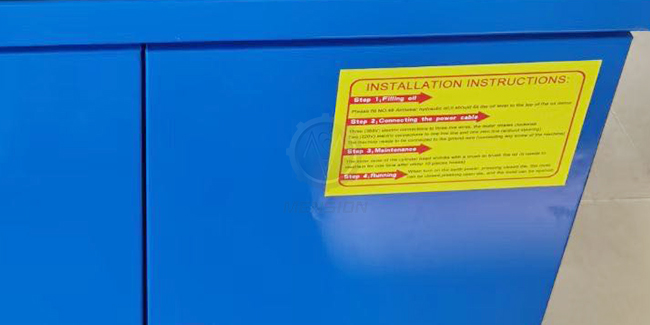

► Freindly installation instructions paste on the machine body for novice
► Antiseismic pressure guage, can show system pressure clear

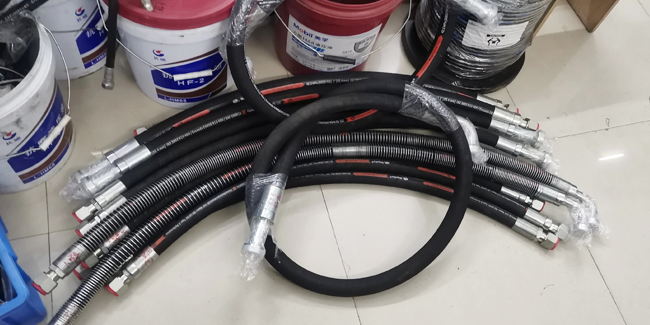

PRESSURE HOSE ASSEMBLY SAMPLES
