HYDRAULIC HOSE CRIMPING MACHINE NC130-I
DESCRIPTION
MS-NC130-I hose crimper is designed for air conditioner hose, hydraulic high pressure hose, industrial pipes and other similar materials. It is famous for its big crimping range, high accuracy and stable PLC micro computer control system. It is the ideal choice for workshop make hydraulic hose assembly from 1/4 inch to 2 1/2 inch.
ADVANTAGES
1. Germany technology, quality steel material for the oil cylinder
2. Foot pedal switch to free the hands for holding big size hose
3. PLC control system with high stability
4. Cr12Mov steel mold with high hardness
5. Quick die change to save the time
TECHNICAL DATA
| Model | MS-NC130-I Crimping Machine |
| Crimping Range | 14 - 87 (mm) |
| Crimping Force | 650 (T) / 6500 (kN) |
| Hose Size | 1/4 - 2.5 (inch) |
| Max. Opening | 31 (mm) |
| Die Sets | 13 |
| Die Set Type | P32 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.01 (mm) |
| Control | UC |
| Standard Voltage | 220 (V) / 380 (V) |
| Motor Power | 3.75 (KW) |
| Length | 650 (mm) |
| Width | 550 (mm) |
| Height | 1360 (mm) |
| Weight | 310 (KG) |
DIE SETS PARAMETER
| Die No. # | Crimping (mm) | Length (mm) |
| 6* | 6.0 - 8.0 | 55 |
| 8* | 8.0 - 10.0 | 55 |
| 10* | 10.0 - 12.0 | 55 |
| 12* | 12.0 - 14.0 | 55 |
| 14 | 14.0 - 16.0 | 55 |
| 16 | 16.0 - 19.0 | 55 |
| 19 | 19.0 - 22.0 | 55 |
| 22 | 22.0 - 26.0 | 70 |
| 26 | 26.0 - 30.0 | 70 |
| 30 | 30.0 - 34.0 | 70 |
| 34 | 34.0 - 39.0 | 75 |
| 39 | 39.0 - 45.0 | 75 |
| 45 | 45.0 - 51.0 | 90 |
| 51 | 51.0 - 57.0 | 90 |
| 57 | 57.0 - 63.0 | 100 |
| 63 | 63.0 - 69.0 | 110 |
| 69 | 69.0 - 74.0 | 110 |
| 74* | 74.0 - 78.0 | 110 |
| 78* | 78.0 - 87.0 | 110 |
NOTE
• " * " for non standard die sets
• Max opening is the working stroke of the hydraulic piston
• Customized die sets with different shape, size and length are available
• Special voltage 110V, 208V, 240V, 415V are availbale
DETAILED IMAGES
► Special double bevel master die hydraulic cylinder design, casting and forging head

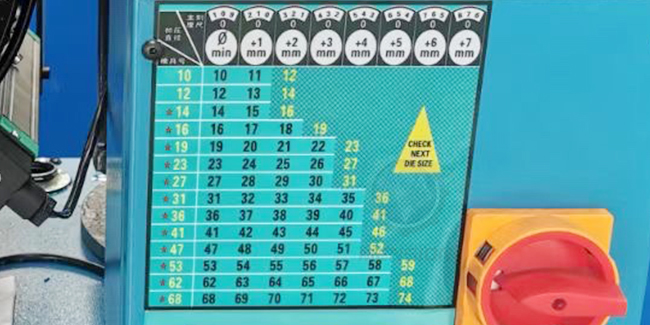

► User friendly die sets choosing reference sheet
► Standard die sets rack and machine stand

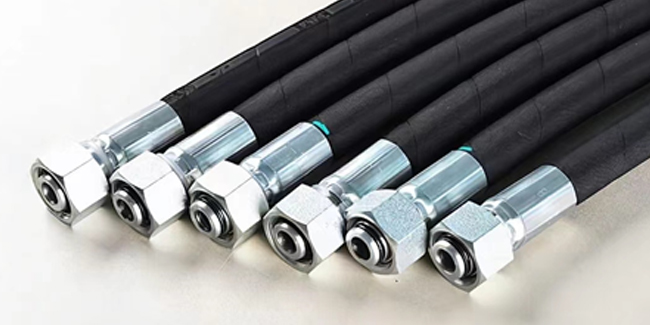

HYDRAULIC HOSE CRIMPING SAMPLES
