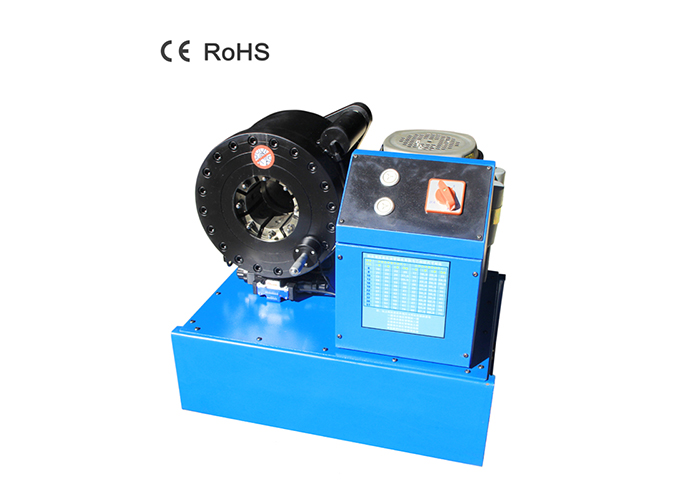

AUTOMOTIVE AC HOSE CRIMPING MACHINE MS-E38
DESCRIPTION
MS-E38 is hose crimper machine with big crimping range, hose capacity up to 2 inch 4SH. With small size and light weight, it can be easily mounted on tables or racks. We recommend using our original rack to fit the machine.
MAIN FEATURES
1) Pressure and oil resistance seal kits with long service time;
2) Double bevel master die with 16 high tension springs;
3) Big flow oil pump, large force;
4) Forging cylinder, one piece design, oil transfer shorten..
TECHNICAL DATA
| Model | MS-E38 AC Hose Crimping Machine |
| Crimping Range | 14 - 87 (mm) |
| Crimping Force | 640 (T) |
| Hose Size | 1/4 - 2 (inch) 4SH |
| Max. Opening | 31 (mm) |
| Die Sets | 10 |
| Die Set Type | 38 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.01 (mm) |
| Control | MS |
| Standard Voltage | 220 (V) 60HZ |
| Motor Power | 3 (KW) |
| Length | 630 (mm) |
| Width | 450 (mm) |
| Height | 600 (mm) |
| Weight | 200 (KG) |
| Hydraulic Oil | 50 (L) |
38 HOSE CRIMPER DIE SETS
| Die No. | Crimping Range | Length |
| 6* | 6 - 8 mm | 35 |
| 8* | 8 - 10 mm | 35 |
| 10* | 10 - 12 mm | 35 |
| 12* | 12 - 14 mm | 35 |
| 14 | 14 - 16 mm | 60 |
| 16 | 16 - 20 mm | 60 |
| 20 | 20 - 22 mm | 60 |
| 22 | 22 - 26 mm | 60 |
| 26 | 26 - 30 mm | 70 |
| 30 | 30 - 38 mm | 70 |
| 38 | 38 - 46 mm | 70 |
| 46 | 46 - 54 mm | 80 |
| 54 | 54 - 64 mm | 80 |
| 64 | 64 - 69 mm | 80 |
| 69* | 69 - 76 mm | 100 |
NOTE
1) Customized die sets are available with different size or shape;
2) Special voltage such as 110V, 208V, 240V, 415V (50HZ) are availbale;
3) Foot pedal is available to make the hands free;
4) * for non standard die sets.

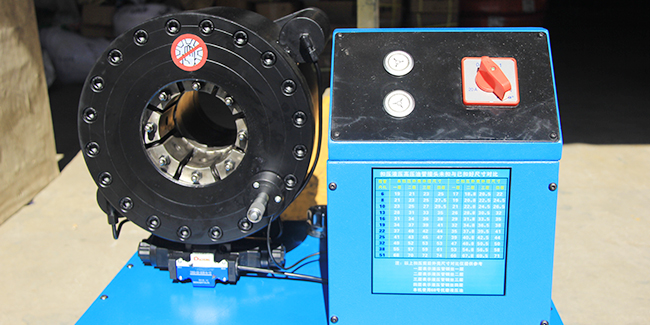

► BIG MATER DIE OPENING
Big opening enble the head can crimp elbow fittings

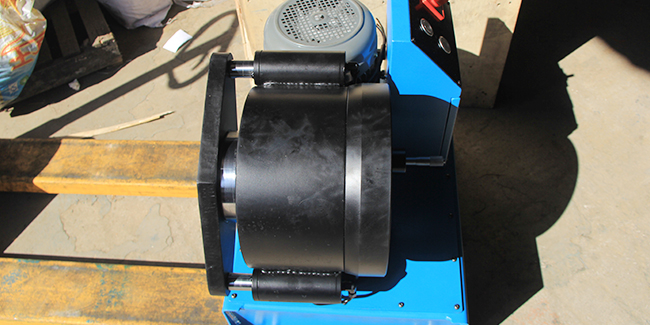

► SMALL OIL CYLINDER
MS-E38 is with small oil cylinder compared with other series, so the weight is light, easy to move

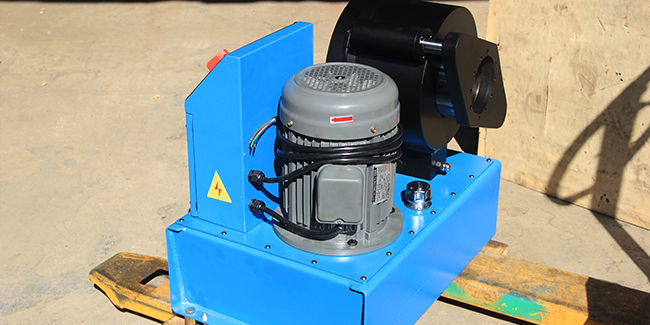

► HIGH QUALIT MOTOR
Motor is with copper wire and aluminium shell, low noise and better heat radiation
► COMPACT STRUCTURE
Total volume of E38 is 0.35CBM, save shipping cost
► APPLICATION FILED

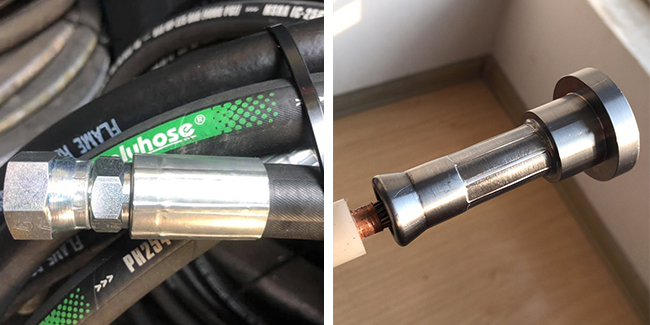

E38 is usually used in excavator, loader or other construction machinery hose repair. It also have the common features of crimping machine for jointing tubes or pipes together.
► PACKAGE AND DELIVERY
Crimping machine and other machines are packed by plywood case, delivery time no more than 7 days
