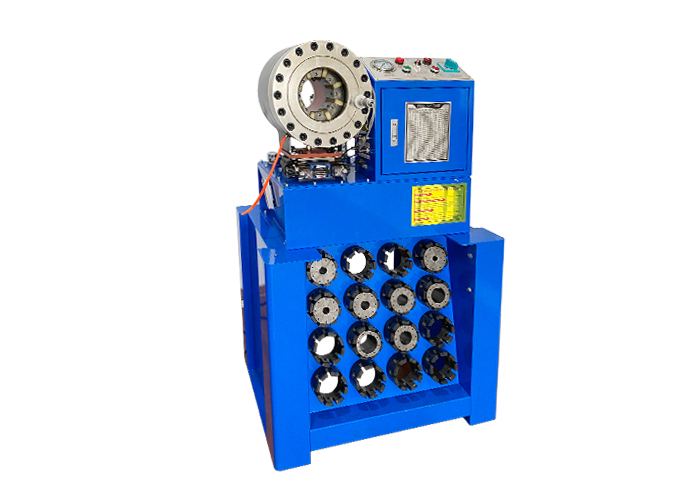

Automotive Air Conditioning Hose Crimping Tool Pipe Crimping Machine Hose Crimper

Product Categories
Weifang Mension Machinery Technology Co., Ltd.
Contact Now

Automotive Air Conditioning Hose Crimping Tool Pipe Crimping Machine Hose Crimper

  • 1
  • 2

Brand Name : MENSION

Model Number : MS-51KH

Certification : CE RoHS

Place of Origin : CN

MOQ : 1 Set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 Sets Per Month

Delivery Time : 2 - 7 Working Days

Packaging Details : One Plywood For One Set

Price : Contact Us

Crimping Range : 14 - 87mm

Hose Size : 1/4 - 2inch

Die Sets : 10

Color : Blue

Max. Opening : 30mm

Crimping Force : 500T

Product Name : 51KH AC Hose Crimping Machine

Application : Workshop

System Pressure : 31.5Mpa

Power : 3KW

Size : 670*430*1520mm

Weight : 310Kg

Contact Now



AC HOSE CRIMPING MACHINE CHEAP MS-51KH

DESCRIPTION



Crimping machine is needed when there is hose or tube connection work. MS-51KH AC hose crimping machine is suitable for press crimping hydraulic hose, indutrial hoses, composite pipes, flexible metal tube, teflon hose, wire rope and used as crimper for other kinds of rope and hose fittings.



MAIN FEATURES

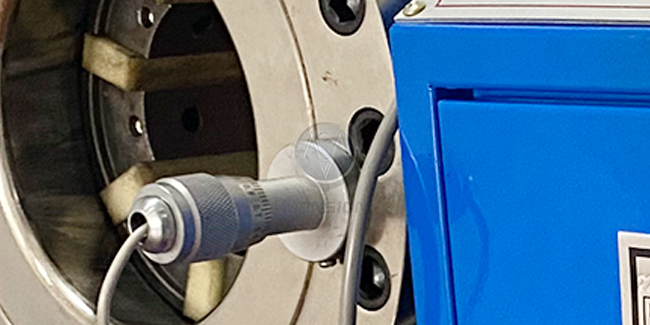

1. High precision with quality micrometer;

2. Forged steel machine head, more durable;

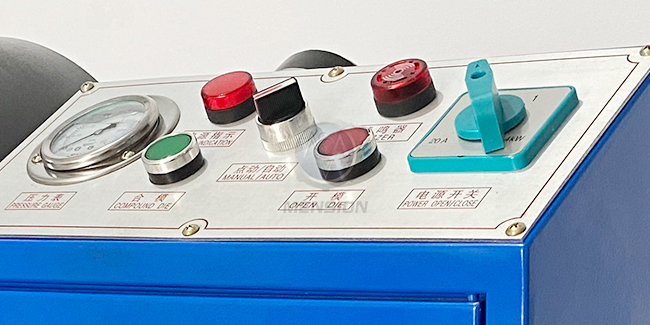

3. Human operate panel, simple controls;

4. Equiped with foot pedal, convenient and makes hands free;

5. Solenoid valve with high precision and good flexiblity.



TECHNICAL DATA



Model

MS-51KH AC Hose Crimping Machine

Crimping Range

14 - 87 (mm)

Crimping Force

500 (T)

Hose Size

1/4 - 2 (inch)

Max. Opening

30 (mm)

Die Sets

10

Die Set Type

51

System Pressure

31.5 (Mpa)

Accuracy

0.05 (mm)

Control

MS

Standard Voltage

220 (V) / 380 (V)

Motor Power

3 (KW)

Length

670 (mm)

Width

430 (mm)

Height

1520 (mm)

Weight

310 (KG)



Automotive Air Conditioning Hose Crimping Tool Pipe Crimping Machine Hose Crimper

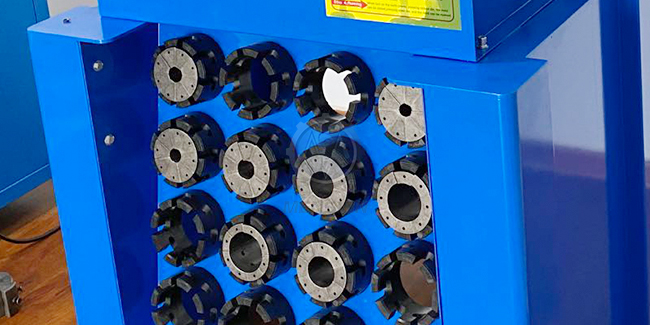

51 SERIES HOSE CRIMPER DIE SETS



Die No.

Crimping Range

 Length

6*

6 - 8mm

 35

8*

8 - 10mm

 35

10*

10 - 12mm

 35

12*

12 - 15mm

 35

15

15 - 19mm

 60

19

19 - 23mm

 60

23

23 - 26mm

 60

26

26 - 31mm

 60

31

31 - 36mm

 70

36

36 - 41mm

 70

41

41 - 47mm

 70

47

47 - 55mm

 80

55

55 - 63mm

 80

63

63 - 69mm

 80

69*

69 - 76mm

 100



NOTE



- * for non standard die sets;

- Customized die sets are available;

- Special voltage 110V, 208V, 240V, 415V are availbale;



Automotive Air Conditioning Hose Crimping Tool Pipe Crimping Machine Hose Crimper



Automotive Air Conditioning Hose Crimping Tool Pipe Crimping Machine Hose Crimper



Automotive Air Conditioning Hose Crimping Tool Pipe Crimping Machine Hose Crimper



Automotive Air Conditioning Hose Crimping Tool Pipe Crimping Machine Hose Crimper
